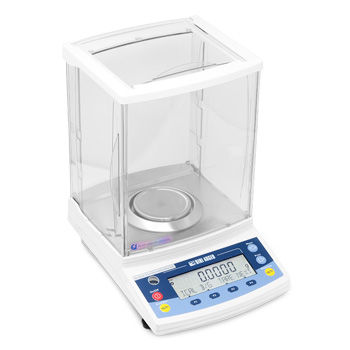

GAT-N Series

Multipurpose high-precision scale, suitable for laboratory and industrial use.

Available Capacities(g): 210,220.

Available on Indent Order.

• Main Features

  • Backlit LCD display with 8 16.5mm digits.
  • Waterproof membrane keypad, with 9 keys.
  • Construction: main structure in die-cast aluminium, ABS housing.
  • Weight sensor with tuning fork system.
  • STAINLESS steel plate, size Ø 80mm.
  • Windscreen, level bubble and adjustable feet.
  • Power supply: fitted with 230 Vac power supply unit as standard.
  • Operating temperature +10°C...+30°C, non-condensing relative humidity 80%.;
  • RS232 port (D-SUB9P) for connection to PC, 3590 series Touch Screen indicator or printer;
  • RS232 port (DIN8P) for continuous transmission of weight and remote execution of tare function;
  • Automatic calibration with built-in weights at power-up or by pressing the keys.

• Weighing Modes

  • Counting.
  • Percentage for formulations and recipe dosing.
  • Customized coefficient to calculate grammage and liquids volume (internal use)
  • Density calculating.
  • Weight formulation and recalling.

• Functions

  • Zeroing;
  • Zero tracking;
  • 6 selectable weighing filters;
  • Semi-automatic tare;
  • Conversion of approved units of measure: g (grams), ct (carats);
  • For internal use: oz (ounces), lb (pounds), ozt (troy ounces), gn (grains), dwt (pennyweight), mom (momme), msg (mesghal), tlh (Hong Kong Tael), tls (Singapore and Malay tael), tlt (Taiwan tael), tola (tola), bat (bath), mg (milligrams);
  • Tolerance control with screen message concerning weight, pieces or customised units of measure and relative (LOW-OK-HIGH) or absolute (MIN-MAX) thresholds;
  • Totalisation in loading and in unloading, on the net or total weight;
  • Up to five recordable tares;
  • 3 customisable virtual keys to choose the operating mode;
  • 6 customisable virtual keys for the possible functions;
  • Automatic update of the reference for the counting;
  • Scale Identification number with a 10 digits ID;
  • Operational messages for zero and tare execution;
  • Bar graph displaying depending on the capacity;
  • Energy saving rules on the screen backlight;
  • Automatically bootable once the power supply unit is connected;
  • 6 configurable communication serial protocols, with string sending either when the weight is stable, on demand, by pressing a key or continuously;
  • Multi-user management with password protection and programmable settings, different for each user:
  • (1 Admin - 2 User - 1 Guest);
  • Date and time can only be changed by authorized personnel.

• Available Models

  Part Number	Class	Pan (mm)	Capacities
  GAT120N	I	Ø 80 mm	120g x 0.1mg
  GAT220N	I	Ø 80 mm	220g x 0.1mg

• Documents

  Dini GAT Brochure

  454 Kb
