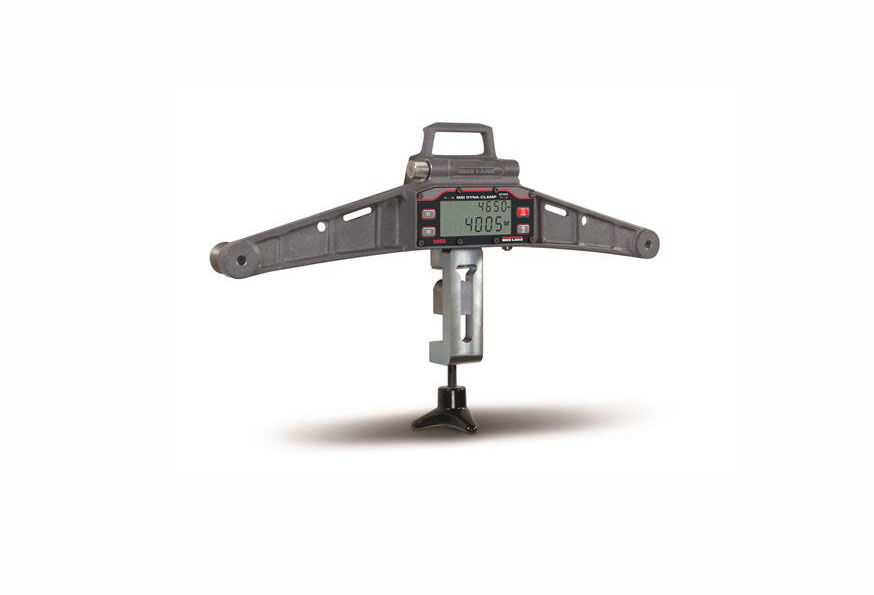

MSI Dyna-Clamp Tension Meter

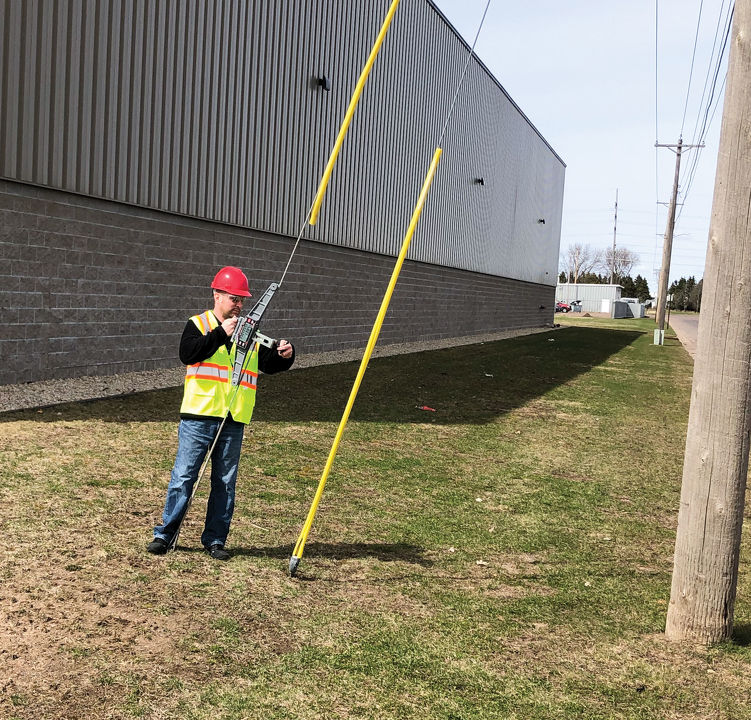

The MSI Dyna-Clamp tension meter has a wire rope engagement site window to help ensure accurate tension readings. The MSI Dyna-Clamp features an easy-turn power screw, to make measuring wire rope tension simple and effortless, even in difficult environments.

The MSI Dyna-Clamp has accommodations for a safety strap, complying with OSHA requirements. Users can measure wire ropes with up to one-inch diameters without changing equipment.

The Dyna-Clamp’s large LCD display can be clearly read in bright, sunny conditions and features a scratch-resistant overlay for added durability. Two lines on the display allow users to view two measurements. The live wire rope tension is prominently displayed on the primary display line, while the secondary display line is configurable to show wire rope diameter, average tension, or peak tension.

Available on Indent Order.

• Main Features

  • 12,500 lbf max tension
  • For wire rope that is 3/16 inches to 1 inch in diameter
  • Powered by two AA 1.5 V alkaline batteries
  • Two part LCD display
  • Two primary permanent keys of POWER and ZERO
  • Two programmable keys
  • Two dedicated setpoints for minimum and maximum allowable wire rope tension (LEDs for measurements outside of allowable range)
  • Auto power off mode to extend battery life
  • IP65 rated powder coated aluminum frame
  • Up to eight factory programmed wire rope calibrations

• Specifications

  Power:

  • Battery operated two AA-cell 1.5 V alkaline batteries(can be replaced with rechargeable NiMH cells)

  Max Tension:

  • 12,500 lbf (5,670 kgf /55.60 kN)

  Operating Time:

  • Alkaline AA-cells: 24 hours

  Wire Rope:

  • Diameter 3/16 in (5 mm) to 1 in (25 mm)

  Accuracy:

  • ±3% of capacity

  Units:

  • lbf, kgf, kN

  Resolution:

  • Standard: 2,500 divisions

  Display:

  • Primary display (bottom) six, 0.7 in (18 mm) numeric digits/Secondary display (top) eight, 0.5 in (13 mm) numeric digits

  Function Keys:

  • Two programmable keys (user-defined) – F1, F2(test, unit, print, scroll, actfun)Two permanent keys – power, zero

  Setpoints:

  • Two dedicated setpoints for minimum and maximum allowable wire rope tension (LEDs for measurements outside of allowable range)

  Auto-off Mode:

  • Prolongs battery life by turning power OFF after 15, 30, 45 or 60 minutes of no activity (user determined)

  Enclosure:

  • IP65 powder-coated aluminum frame

  Calibrations:

  • Up to eight factory programmed wire rope calibrations

  Operating Temperature:

  • -4 °F to 122 °F (-20 °C to 50 °C)

  Warranty:

  • Two-year limited

  Approvals:

  • CE Marked/UKCA




• Available Models

  Part Number	Description
  189581	Dyna-Clamp Line Tensiometer for 1.0in Rope 12,500lbs
  198418	Dyna-Clamp Carrying Case
